Hi-Fi

We are very pleased to use the famous LUNDAHL Transformers in our High Fidelity products. Lundahl is a Swedish company that has designed and manufactured superb audio transformers in more than 50 years. Their quality is attested by a long list of the famous companies in the audio industry and many, many hi-fi enthusiasts.

Galvanic Isolator

Whenever you need to connect two pieces of equipment and experience buzz or hum you will need this unit. It is priceless "tool" when connecting a computer to the audio system.

To have this unit on a shelf is deliberating, suddenly you don't need to care about earthing, chasis isolation and other more or less conventional methods to get rid of buzz or hum - just plug it in, lay back and listen to your favorite music.

There are two versions Sparta and Athen:



Athen uses LL1527 which is the optimal solution for this kind of problem.



Sparta uses LL1591 which is a "spartan"(budget) version of the LL1527.





For options for your housing and contacts take a look at the DESIGN OPTIONS.

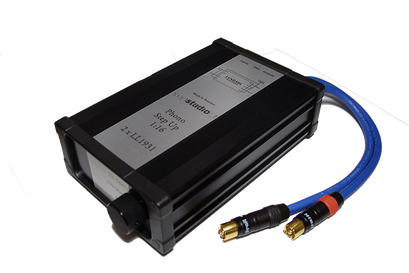

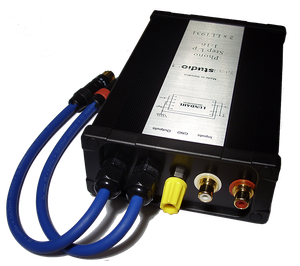

MC Step Up

Reasons are many why using an step-up transformer. As many as all our ways to get more pure sound from our systems.



Choose some of the transformers and ratios which fit your equipment best.

Here is the LINK to the Lundahl Transformers web site.



We always suggest, if possible, to leave some room for experiments with different ratios, resistors etc.

It can be fun to experiment.



If it's hard to choose the transformer, here's some reading on Kevin Karter's web site.

For options for your housing and contacts take a look at the DESIGN OPTIONS.

PC to Amp

For problem-free connection of computers with rest of your sound system. This device will provide full galvanic isolation of the two channel audio (stereo) with preservation of signal's full tonal quality.



Tailormade your high quality device to suit your specific needs:



  • For nominal levels of 0dBU we recomend two LL1532.



  • If levels are up to +6dBU we would recomend two LL1527.



  • Or if your computer generates extremely high levels we can recomend LL1588 or LL7902.

For options for your housing and contacts take a look at the DESIGN OPTIONS.

Design Options

All our Hi-Fi products are fully customized by your order.



Here are our proposals to housings and contacts which we try to have on our shelves for shorter delivery times.

You are offcoarse welcome to ask after parts and details not shown here.

Premium

Dimensions:

Length 155mm

Width 106mm

Height 55mm

Panel contacts:

Standard

Dimensions:

Length 90mm or 170mm

Width=108,5mm

Height 45mm

Compact

Dimensions:

Length 110mm

Width 70mm

Height 24mm

XLR Premium - Gold plated Neutrik

XLR Standard - Silver plated Neutrik

Cable contacts:

Phono Premium - Gold plated Neutrik

Phono Standard - Gold plated contact

XLR Premium - Gold plated Neutrik

XLR Standard - Silver plated Neutrik

Ground contacts:

Gold plated GND post





Phono Standard - Gold plated contact

Choose your color:



Black

Blue

Red

Yellow

Green/Yellow

All our products are RoHS compliant
