We are  very proud to use the famous LUNDAHL Transformers in our Splitters. Lundahl is a Swedish company that has designed and manufactured superb audio transformers in more than 50 years. Their quality is attested by a long list of the famous companies in the audio industry.

Splitter MM1121 Allegro & Crescendo (1 In - 1+2 Out's)

One channel mic/line portable splitter is available in two variants, both with Lundahl transformers inside:

MM1121 Allegro - with LL1581XL transformer for pro audio applications. Great sound with high immunity to external magnetic fields. From the mic signal levels upp to +23dBU on less than 1%THD @50Hz. Equipped with silver plated XLR's from Neutrik.

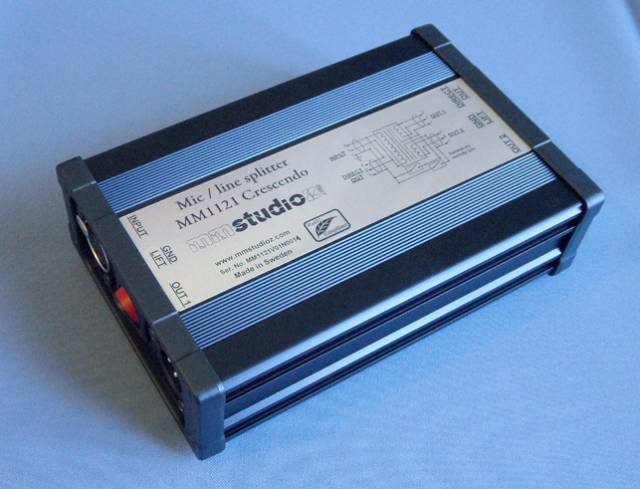

MM1121 Crescendo - for the absolute best in performance with LL7904 transformer for very high signal levels. From the mic signal levels upp to +30dBU on less than 0,1%THD @50Hz. This transformer has no equal in the market! For superb connectivity there are gold plated XLR's from Neutrik.

Splitter MM1121 is passive, which means no batteries, "wall warts" or power cords are required.

TRANSPARENCY - To make no coloration on the original signal we use Lundahl's transformers, because of Lundahl's transformers are well known as transparent. We do not use any other component which could made colorations on sound. There is no resistors, no capacitors and absolutely no amps in signal path. Used connectors, switches and cables are carefully selected to match highest quality requirements.

Compact case of black anodised extruded aluminium with plastic end bezels which guard lockable Neutrik connectors and switches for ground lift.

Dimensions and weight:

Allegro - height=45mm, width=108,5mm and length=90mm weight=360gr

Crescendo - height=45mm, width=108,5mm and length=170mm weight=585gr.

We guarantee that this splitter will survive fall from one meter high and operate correctly afterwards. Damages on the box like deformations and scratches are to expect and we can not take answer for them.

Phase deviation versus frequency


0,3 degree in the audio band is neglectable thanks to Lundahl Transformers superior quality

Splitter MM1128 Allegro & Crescendo (1 In - 1+2 Out's)

8 channel stagebox mic line splitter MM1-1-2-8 is available in two variants, with Lundahl transformers inside:

MM1128 Allegro - with LL1581XL transformer for pro audio applications. Great sound with high immunity to external magnetic fields. From the mic signal levels upp to +23dBU on less than 1%THD @50Hz.

MM1121 Crescendo - for the absolute best in performance with LL7904 transformer for very high signal levels. From the mic signal levels upp to +30dBU on less than 0,1%THD @50Hz. This transformer has no equal in the market! For superb connectivity there are gold plated XLR's from Neutrik.

Splitter MM1128 is a high quality professional 8 channel audio signal splitter for use on stage, in studio, in OB vehicles etc. This passive splitter offers mic and line signal level splitting without coloring the signal.

Splitter MM1128 is passive, which means no batteries, "wall warts" or power cords are required.

TRANSPARENCY - To make no coloration on the original signal we use Lundahl's transformers, because of Lundahl's transformers are well known as transparent. We do not use any other component which could made colorations on sound. There is no resistors, no capacitors and absolutely no amps in signal path. Used connectors, switches and cables are carefully selected to match highest quality requirements.

Plug Mama MKII housing is an extremely robust and compact stagebox in a modern, well thought out panel design

APPLICATIONS:

  • Studio and live stagebox splitter
  • Sub-distribution
  • Fixed installation
  • Floor and wall installation

The rugged steel housing ensures that the Splitter will not pick up noise from RF (wireless mics, TV links, mobile phones etc.) or AC mains (cables, transformers...) and will lead a long and productive life on stage and in similar harsh enviroments.

Product details: input and output connectors

PRODUCT FEATURES:

  • 8 channels in the rugged steel housing.
  • Each channel consists of the input, one direct out and two transformer isolated out's.
  • Each transformer output winding has its own Faraday shield.
  • Phantom power is passed through Direct output to Input.
  • Combo receptacles accommodate XLR and balanced ¼'' connectors.
  • RF rejection ensured thanks to transformer´s audio bandwidth.
  • Ground lift switches for isolated outputs are splashproof and lockable.
  • Compact and suitable for muliple set-up with a modern and ergonomic panel design
  • Better overview even in bad lighting, because inputs are clearly separated from outputs
  • Scratch-resistent housing with special double lacquered coating

We guarantee that this splitter will survive fall from one meter high and  operate correctly afterwards. Damages on the box like deformations and scratches are to expect and we can not take answer for them.

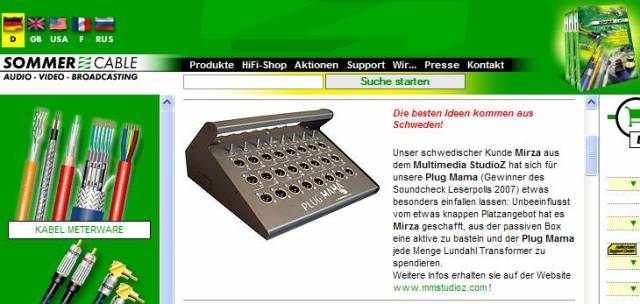

Die besten Ideen kommen aus Schweden!

Unser schwedischer Kund Mirza aus dem Multimedia StudioZ hat sich fur unsere Plug Mama (Gewinner des Soundcheck Leserpolls 2007) etwas besonders einfallen lassen: Unbeeinflusst vom etwas knappen Platzangebot hat es Mirza geschafft, aus der passiven Box eine aktive zu basteln und der Plug Mama jede Menge Lundahl Transformer zu spendieren.


Weitere Infos erhalten sie auf der Website www.mmstudioz.com

Many thanks to Pascal from Sommercable!

Dimensions and weight:

Allegro - height=157mm, width=258mm and length=310mm weight=5,2kg

Crescendo - height=157mm, width=258mm and length=310mm weight=6kg.

Splitter MM1128R Allegro & Crescendo (1 In - 1+2 Out's)

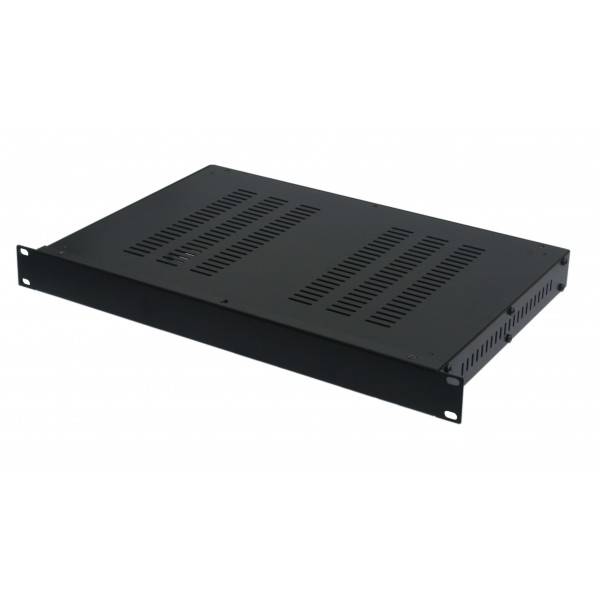

Rack mounted version of 8 channel mic line splitter MM1-1-2-8 is available in two variants, both with

Lundahl transformers inside:

MM1128 Allegro - with LL1581XL transformer for pro audio applications. Great sound with high immunity to external magnetic fields. From the mic signal levels upp to +23dBU on less than 1%THD @50Hz.

MM1121 Crescendo - for the absolute best in performance with LL7904 transformer for very high signal levels. From the mic signal levels upp to +30dBU on less than 0,1%THD @50Hz. This transformer has no equal in the market! For superb connectivity there are gold plated XLR's from Neutrik.

PRODUCT FEATURES

  • 8 channels in the rugged steel housing only 1RU high (44,3mm)
  • Each channel consists of the input, one direct out and two transformer isolated out's
  • Each transformer output winding has its own Faraday shield
  • Phantom power is passed through Direct output to Input
  • Combo receptacles accommodate XLR and balanced ¼'' connectors
  • RF rejection ensured thanks to transformer´s audio bandwidth
  • Ground lift switches for isolated outputs are splashproof and lockable

Splitter MM1131 Molto (1 In - 1+3 Out's)

One channel mic line portable splitter with one input, one direct output and three transformer isolated outputs. With a LL1590 Lundahl's transformer inside.

This is a splitter for professional audio applications. Great sound with high immunity to external magnetic fields. From the mic signal levels upp to +6dBU on less than 0,2%THD @50Hz.

Splitter MM1131 Molto is passive, which means no batteries, ”wall warts” or power cords are required.

TRANSPARENCY - To make no coloration on the original signal we use Lundahl's transformers, because of Lundahl's transformers are well known as transparent. We do not use any other component which could made colorations on sound. There is no resistors, no capacitors and absolutely no amps in signal path. Used connectors, switches and cables are carefully selected to match highest quality requirements.

Made in the same eclosure as MM1121 Crescendo, but with one XLR-male contact more and miniature ground lift switches.

Compact case of black anodised extruded aluminium with plastic end bezels which guard lockable Neutrik connectors and switches for ground lift.

We guarantee that this splitter will survive fall from one meter high and operate correctly afterwards.

Damages on the box like deformations and scratches are to expect and we can not take answer for them.
